Self-Leveling Tripod

From the start, our team set out to rethink something so familiar that its flaws were often overlooked — the camera tripod. We noticed how setting up a traditional tripod requires careful, repetitive wrist adjustments that can be slow, awkward, and even painful. For many people with hand or wrist limitations, this barrier quietly excludes them from photography and videography altogether. We wanted to create something that could remove that barrier and open the creative process to more people.

The idea began as a simple sketch of a tripod with a moving base, inspired by gimbal systems used in drones. We imagined a tripod that could find level on its own, without any twisting or fine adjustments. To understand what users needed most, we ran surveys with students and hobbyists who had experience with photography but struggled with manual tripods. Their responses shaped our priorities: fast setup, stability, and portability had to come first.

With those goals in mind, we designed a motorized platform controlled by an Arduino board and guided by an IMU sensor. Through dozens of CAD iterations, 3D-printed mockups, and finite element simulations, we built a base light enough to carry anywhere yet strong enough to support heavy camera gear. The result was a tripod that quietly levels itself in seconds, sparing users the strain of constant manual adjustment.

This project became more than a technical challenge. It showed us how engineering can be used to make creative work more accessible. What started as a response to a small frustration grew into a product that can give more people the freedom to focus on capturing moments, rather than fighting their equipment.

Early Ideation

We began with multiple sketches exploring different ways to achieve three-axis leveling. Early ideas focused on motor placement for stability and space efficiency. Through iteration, we chose a motor-driven leveling method for its precision and portability. We also added circular tracks to reduce friction and an external control box to improve usability24-370 Team Project.

Developed Ideation

User surveys confirmed that ease of setup, portability, and stability were the top priorities. This led us to finalize the motorized gimbal concept, using threaded connections for compatibility and reinforcing weak points identified through analysis24-370 Team Project.

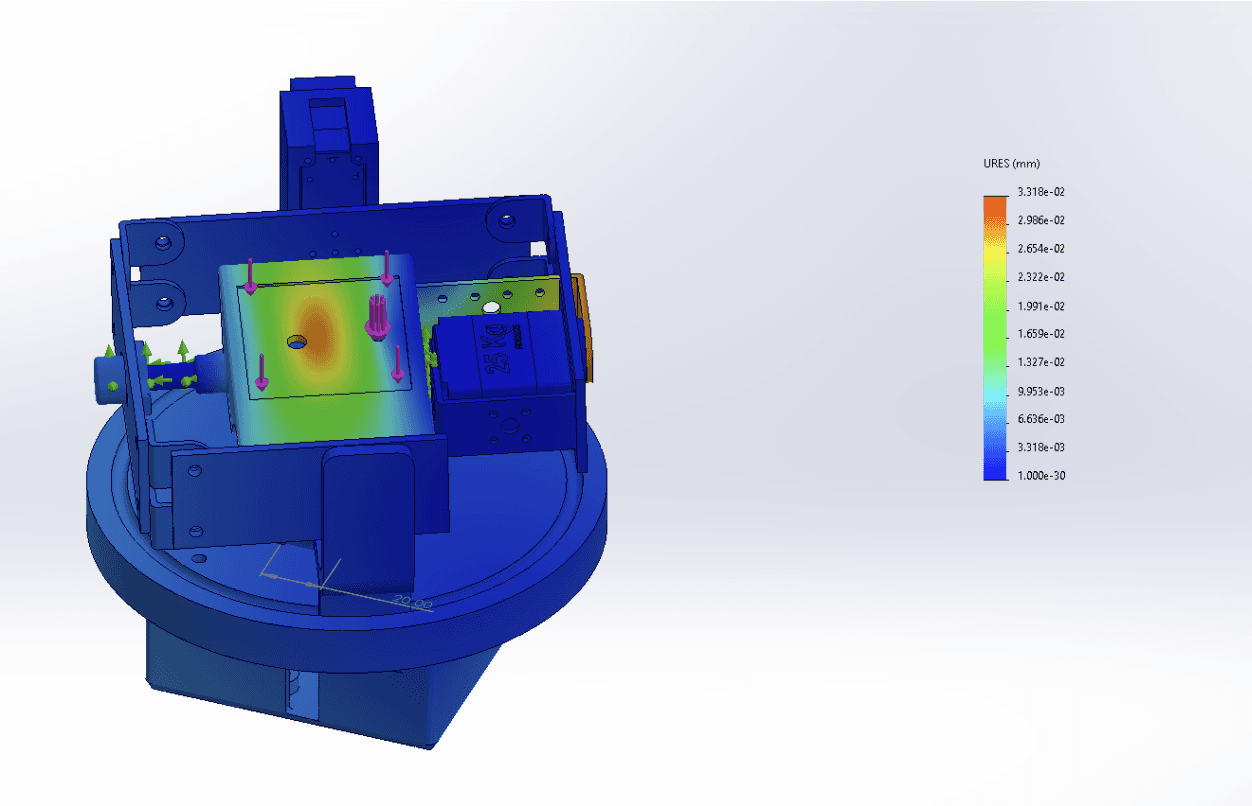

Stress Analysis and FEA

We simulated a 10-pound load to reflect typical camera equipment. Finite element analysis verified that the PLA base and aluminum arms could handle the stress without excessive deformation. The results informed where to replace PLA with aluminum to ensure strength while minimizing weight24-370 Team Project.

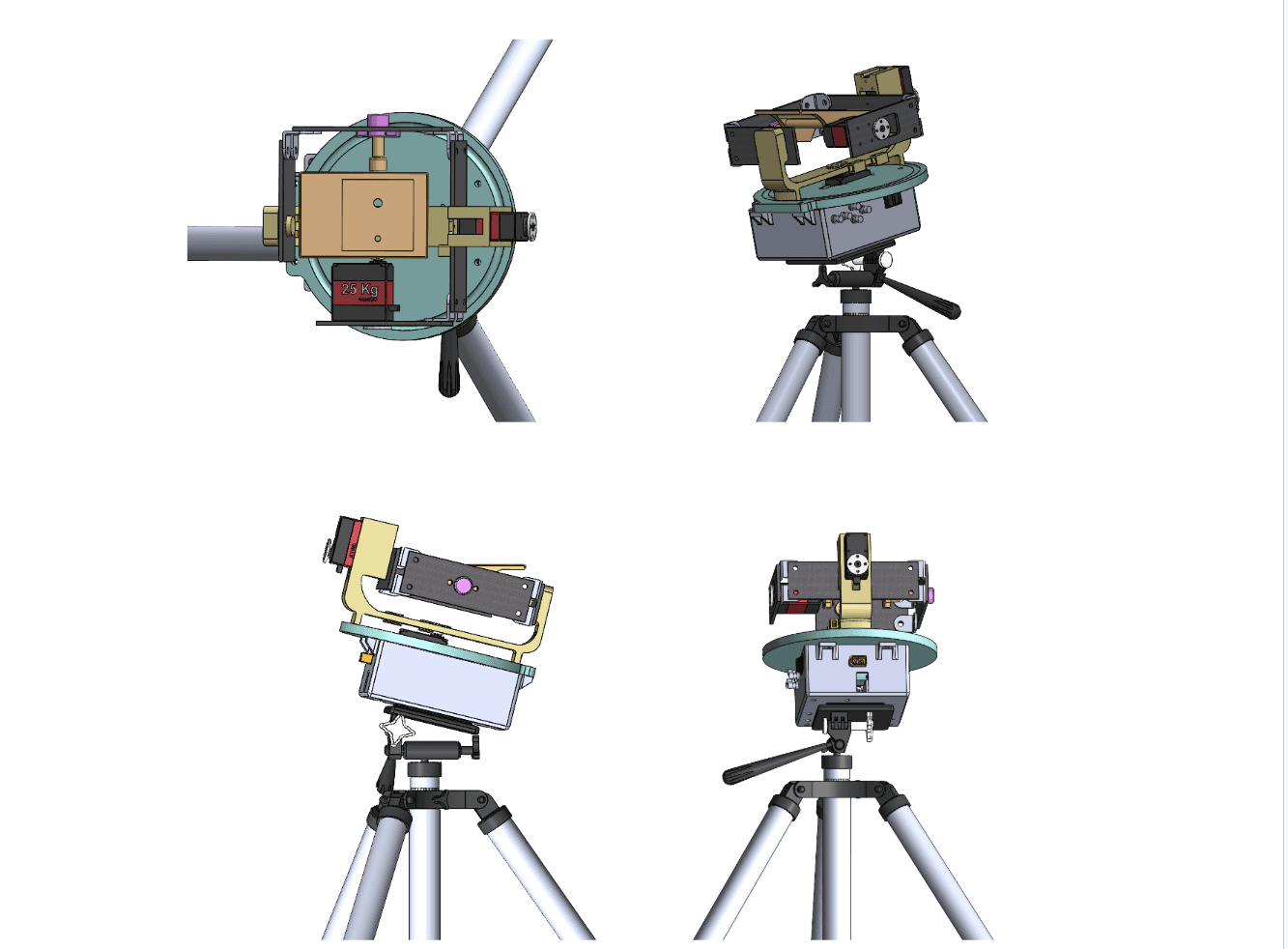

CAD and Subassemblies

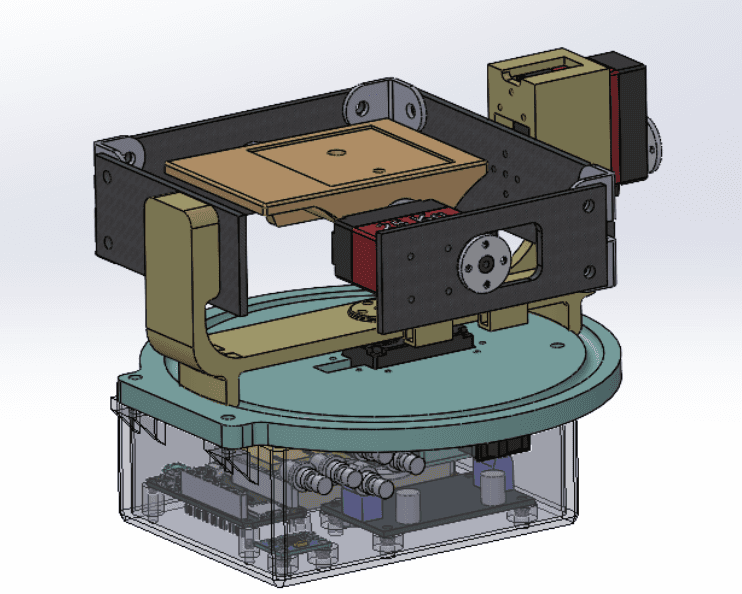

The gimbal base was modeled as an 18 cm disk with three motor-driven support arms and an enclosed control box housing the Arduino, IMU, and battery. The platform achieves stable self-leveling by distributing torque among the motors while preventing static tipping.

Manufacturing

We fabricated PLA components with an FDM 3D printer for complex geometry and lightness, and used waterjet-cut 6061 aluminum sheets for structural brackets. This combination balanced cost, durability, and ease of manufacturing. The full assembly cost, including purchased electronics, was about $246 per unit at prototype scale24-370 Team Project.

Continuous Improvement

Future steps include switching to a larger Arduino with more interfaces, redesigning the control box for easier wiring, and testing with real users who experience wrist pain to gather usability feedback. We also plan to optimize the software to make the auto-leveling response faster and smoother24-370 Team Project.

Impact

This project shows how inclusive design and mechanical engineering can come together to remove barriers to creative work. By automating an overlooked yet essential task, the self-leveling tripod empowers more people to engage in photography and content creation with comfort, efficiency, and independence.
